Temperature Control Modules

Key Features:

  • Advanced Heat Exchange: Utilizes a stainless steel heat exchanger to ensure efficient heating of sterile water, meeting stringent pharmaceutical standards.
  • Custom Skid Assembly: Each TCM skid is meticulously designed, incorporating a robust frame supporting a centrifugal pump, process piping, and a range of essential instruments.
  • Temperature Control: Regulates temperature by introducing plant steam into the primary heat exchanger, subsequently heating the secondary heat exchanger with tempered water for accurate temperature control.
  • Comprehensive Instrumentation: Equipped with temperature transmitters, pressure transmitters, control valves, safety relief valves, and Foundation Fieldbus Multi-Port
    Junction for seamless monitoring and control.
    Remote Secondary Heat Exchanger: Enhances flexibility by locating the secondary heat exchanger remotely, optimizing space and workflow.
  • User-Friendly Design: All components are easily accessible, ensuring hassle-free service and replacement for minimal downtime.

Controls and Connectivity:

  • Foundation Fieldbus Compatibility: Indicating transmitters and control valves are compatible with Foundation Fieldbus, ensuring streamlined data transmission and control. Profibus Option: Control valves can be converted to Foundation Fieldbus compatibility, providing adaptable control solutions at an additional cost.
  • Efficient Power Management: Integrated main disconnect panel delivers 480V 3ph 30A service to the pump motor, supported by a motor starter for seamless motor control.

Quality Assurance:

  • Approved Components: Piping, valves, and instrumentation sourced from approved
    vendors, meeting or exceeding stringent specifications for reliable performance.
  • Insulation Options: Customizable insulation based on customer specifications, enhancing energy efficiency as needed.
  • Customer-Supplied Heat Exchangers: Utilizes customer-supplied heat exchangers, ensuring compatibility with existing systems and processes.
    Experience superior temperature control and operational efficiency with our Temperature
    Control Module. Engineered for precision and reliability, it's the ideal solution for
    pharmaceutical companies striving for excellence in their operations.

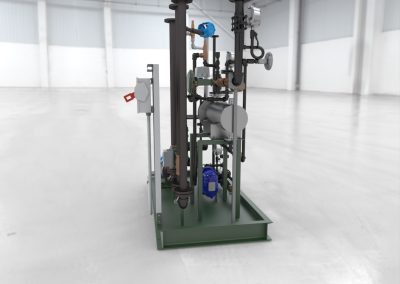

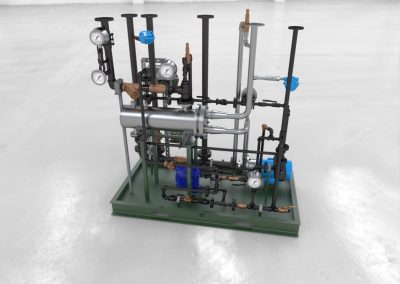

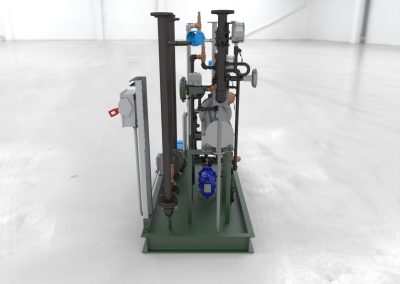

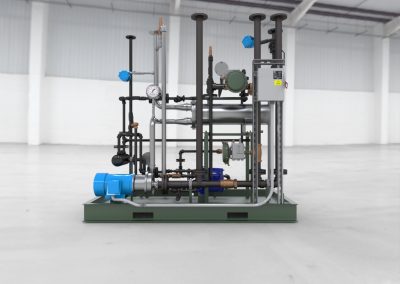

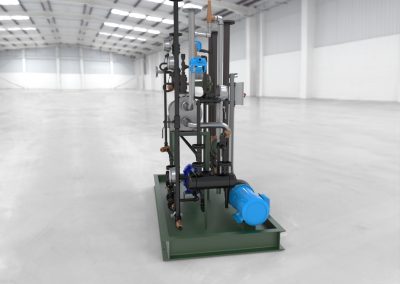

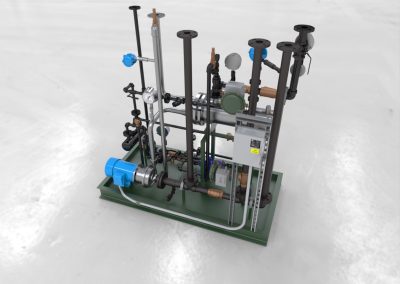

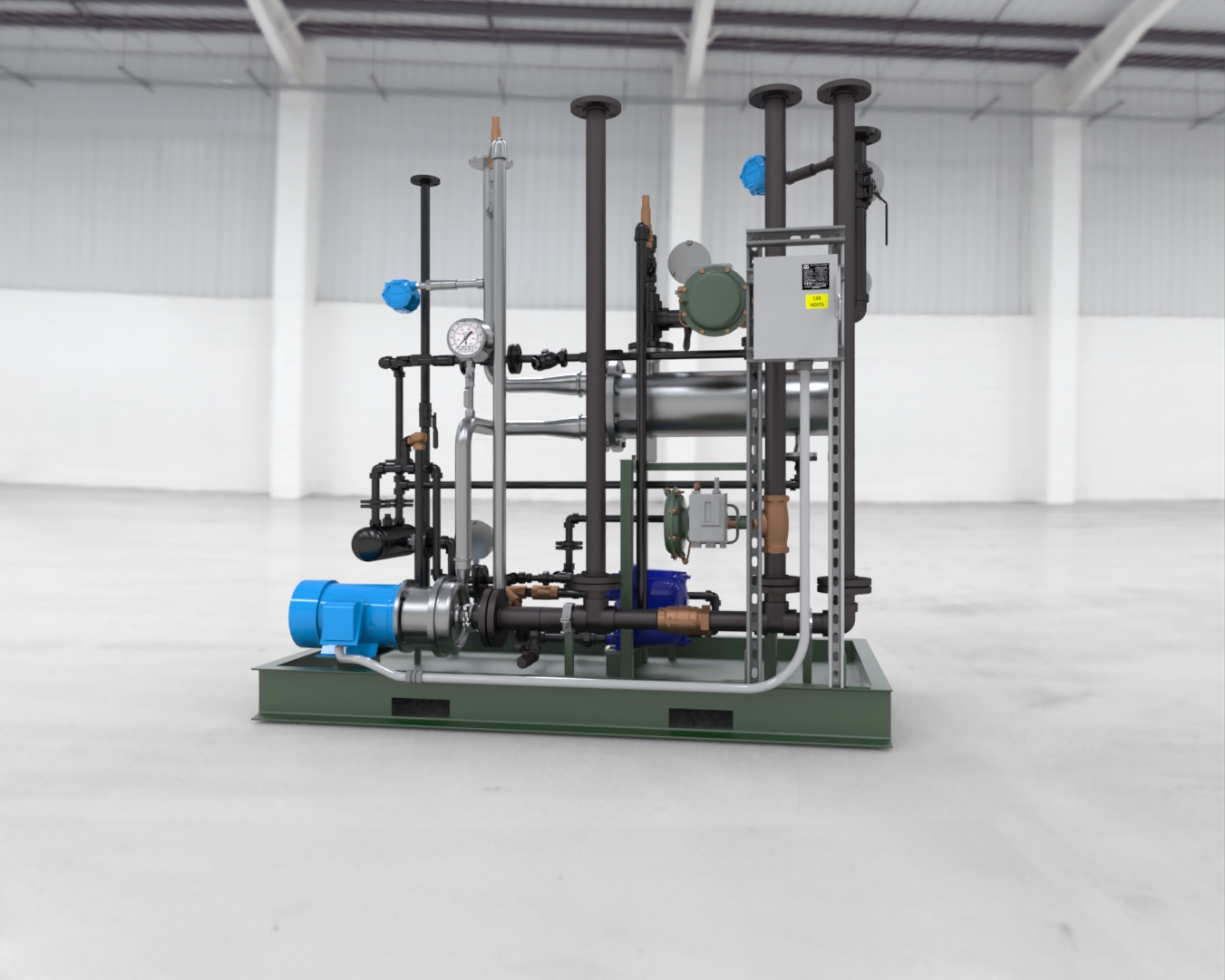

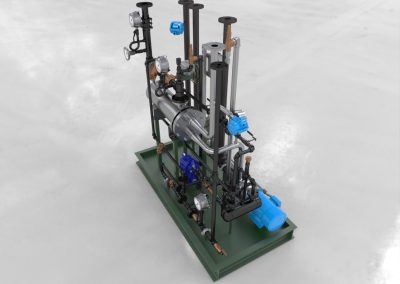

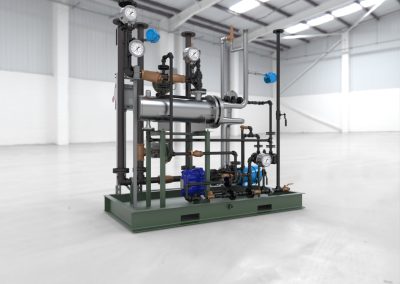

Product 360 view
